Machine Safety

RSL 200 - The Smallest Safety Laser Scanner on the Market!

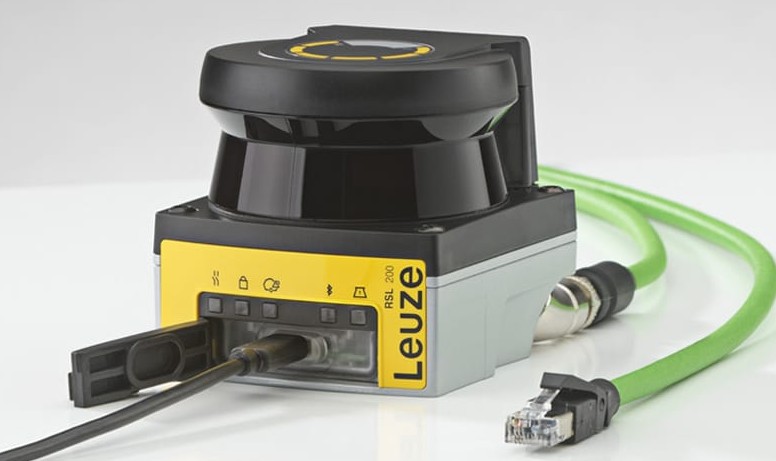

The RSL 200 safety laser scanners are optimized for minimal space requirements.

At just 80 mm high with a footprint of 80 x 86 mm, they offer an operating range of 3.0 m and a 275° scanning angle. This makes them particularly suitable for use on AGVs and AMRs, but also for area safeguarding and restart protection for compact machines. Up to 32 protective field sets allow adaptation to the environment, load and speed. These adjustments can be optimized even further with the sets consisting of 2 warning fields and one protective field. Clever details such as the rotatable connections, an optimized mounting bracket and the diagnostics app ensure simple integration and efficient safety.

Benefits

  • Low space requirements: at only 80 mm high and with a base area of 80 x 86 mm, the devices are perfect for integrating into compact AGVs and AMRs
  • Up to 32 switchable field sets for dynamic adaptation to the driving situation and load
  • High-quality measurement data output for navigation
  • Reliable operation: Robust against shocks and vibrations as well as dirt and airborne particles
  • Spatial advantage: Easy integration thanks to standard M12 connections with rotating connectors
  • Fast access to status information and simple diagnosis using the RSL 200 app

Highlights

Rotating Connections for Perfect Integration Optimized for Minimal Space Requirements Flexible Safeguarding

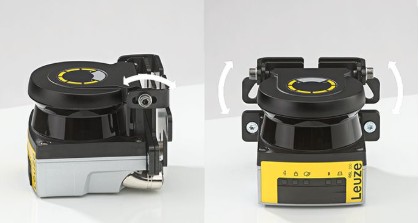

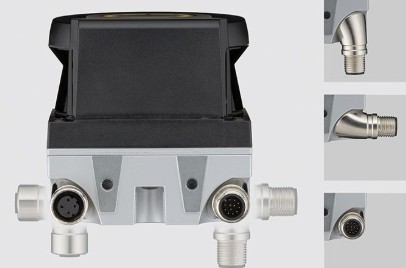

With its rotating connections, the RSL 200 provides maximum flexibility for integration. Cables can thus be routed optimally, and the required installation space is minimized. The RSL 200 is connected via a standard M12 connector with 8 pins or 12 pins depending on the device’s respective function.

 At 80 mm high with a 80 x 86 mm base area, the small dimensions of the RSL 200 makes it ideal for safeguarding compact vehicles. The devices have a scanning angle of 275° and an operating range of 3 m. The mounting bracket allows the RSL 200 to be aligned horizontally and vertically. Here, too, the design is optimized for minimal space requirements. Furthermore, if servicing is required, the devices can be swapped out easily with just two screws without needing to be realigned.

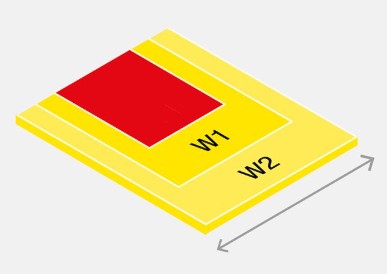

 Up to 96 configurable fields enable flexible adaptation to the speed, direction of travel and vehicle load. Switchover takes place in 3-field sets (triples), which each consist of one protective field and two warning fields. Up to 32 adapted configurations are therefore available.
Three Communication Options Quick Diagnosis with Mobile App High Availability Thanks to Removable Configuration Memory

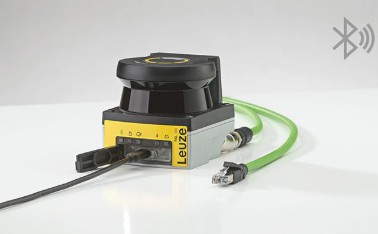

All RSL 200 scanners have USB and Bluetooth interfaces for configuration and diagnosis. In addition, thanks to their integrated Ethernet TCP/IP interface, the RSL 230 / 235 models are already. Network-capable, e.g. for the transmission of measurement data for navigating AGVs and AMRs or for diagnosis via central access points.

  • USB
  • Bluetooth
  • Ethernet TCP / IP (RSL 230 or later

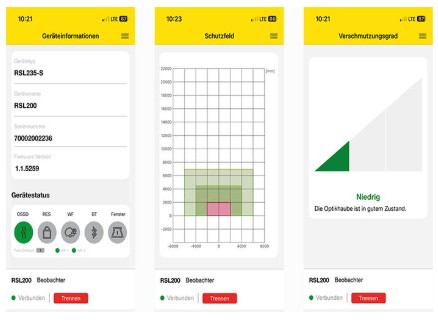

The RSL 200 mobile app enables easy access to status information and diagnostic data via Bluetooth – even if access to the device is limited. It allows important, detailed information to be collected remotely without having to interrupt the protective field. All messages are displayed in plain text and, if necessary, can also be sent directly to the Leuze service center.

The app can be used on smartphones and tablets with the Android or iOS operating system.

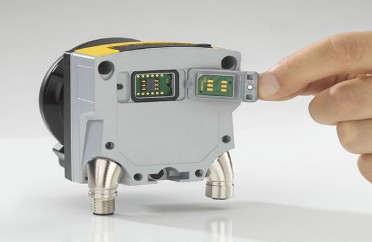

 The RSL 200 models have a removable configuration memory. If the device needs to be serviced, the device configuration can thus be quickly and easily transferred to a new device. Furthermore, if servicing is required, the devices can be swapped out easily with just two screws without needing to be realigned.

Leuze Safety Relays

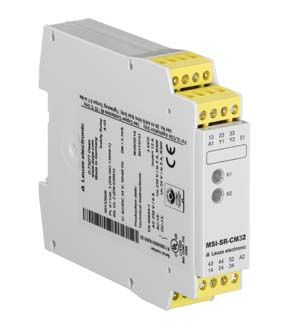

With the MSI safety relays, individual safety sensors can be integrated quickly and easily into the safety circuit of machines and systems. The MSI contact extensions are used both as an output extension for OSSDs and for contact multiplication for evaluation units and safety controls.

Advantages

  • Compact and safe
    For the fast integration of individual safety sensors into the safety circuit of systems and machines, the safety relays offer the right solution.
  • Diverse application possibilities
    The application possibilities range from the monitoring of simple components such as E-Off, through to the integration of optoelectronic sensors.
  • Flexible installation and replacement
    The pluggable screw and spring-cage terminals allow the safety relays to be installed flexibly and replaced quickly.

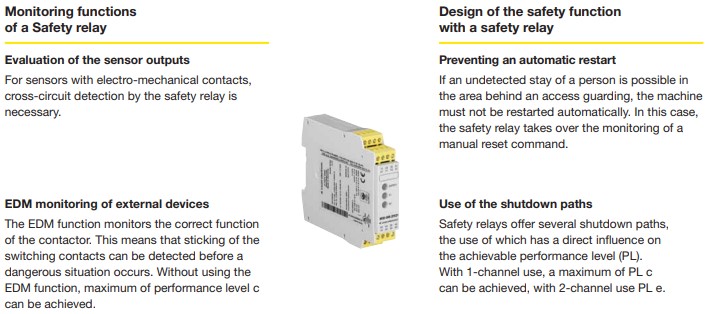

Safety relay as port of the safety function - The safety function ensures that the drive can be shut down safely at all times – when the sensor is triggered and if a fault is detected. Here, the safety-related part of a control system (SRP/CS) in accordance with ISO 13849-1 is the central component necessary for execution of a safety function. This component evaluates signals coming from the sensors, detects cross-circuits on the sensor side and faults in the contactor. It also ensures safe shutdown of the drive. A safety sensor alone cannot fulfil these tasks – safety sensors are always just part of a safety function. In the simplest case, a safety relay performs the necessary tasks. The safety function is usually triggered by a person. Here, the technology of the safety relay recognizes the signals coming from the sensor and, via the shutdown paths, disconnects the supply voltage to the contactor – and the contactor in turn disconnects the power supply to the drive.

For the right safety relay give your local Barry Sales representative a call 636.326-1211.

Leuze ELC Safety Light Curtains

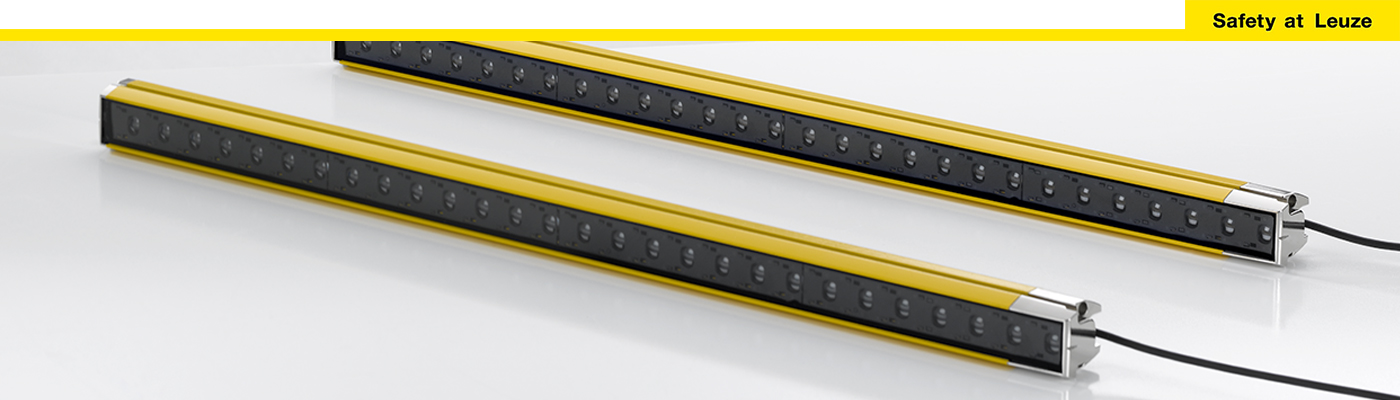

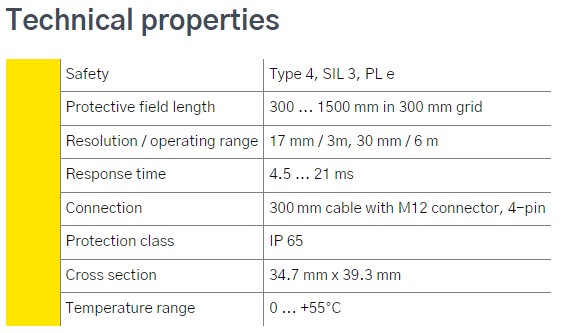

The ELC 100 Safety Light Curtains focus on the essentials of what matters when safeguarding points to operation. For applications with an operating range of up to 6 meters, the robust devices are perfect for cost-effective machine designs. These curtains are very easy to integrate and install.

Advantages

  • You receive reliable safety technology of proven quality at an attractive price.
  • The devices can be flexibly integrated in the machine design with little effort.
  • The simple mechanical and electrical design enables quick installation of the devices. No configuration is required.
  • The multi-level alignment display ensures fast and optimum alignment of the devices. No prior knowledge required.
  • The housings are made of metal throughout to ensure reliable operation. Their unique design also makes the ELC 100s extremely shock and vibration proof.

Leuze MLD (Multibeam Light Device)

When functionality becomes economical Multiple Light Beam Safety Devices with muting function ensure constant personnel protection (access guarding).

Hard guarding (bumpers, fencing other barricades) has been the standard practice for keeping individuals away from potentially hazardous machines and processes in the Machine Tool Industry. However, hard guarding can be expensive and take up vital floorspace along with limiting line of sight. A real eyesore.

The MLD multibeam light device can eliminate hard guarding for many machine tool applications resulting in a more compact design. The easy to install 1 to 4 beam safety devices are available in classic receiver/transmitter or all in one transceiver packaging.

With range selections of 0-8m, 0-50m, or 20-70m, protection of large areas can be achieved with a single set. An integrated laser alignment option allows for accurate alignment even at very long range.

The unit can stand up to the harshest of environments due to the water-resistant aluminum extrusion IP67 body and can withstand cold temperatures down to -30°C.

Available in Basic, Advanced or Extended versions which can offer the correct device function based on your application needs. This includes EDM, remote reset, 2-4 sensor muting, double scan, digital display and many more available option.

 Download Product Brochure

Light curtains for Industrial Safety Applications

Safety Light curtains are electro sensitive devices using one or more light beams, emitted by an Emitter and received by a Receiver, to create an intangible controlled area.

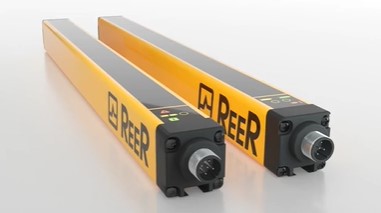

EOS4 is a compact safety light curtain range with competitive performance and innovative features. Includes models with integrated safety functions such as self-monitoring static outputs, control of external contactors (EDM), and selectable automatic or manual restart. 2 safety PNP static outputs. Easy connection and installation thanks to the M12 connectors and the use of unshielded cables up to 100 meters.

EOS2 is a compact safety light curtain range with competitive performance and innovative features. Includes models with integrated safety functions such as self-monitoring static outputs, control of external contactors (EDM), and selectable automatic or manual restart. 2 safety PNP static outputs. Easy connection and installation thanks to the M12 connectors and the use of unshielded cables up to 100 meters.

 ADMIRAL series of safety light curtains, with integrated Blanking functions, is the ideal solution for the protection of the majority of high-risk industrial applications. Long Range models with 2, 3 and 4 allow beams reach a max. of 60 m, while the Dual beams models reach the max. of 80 m.

Safety light curtains with integrated Muting function for the protection of high-risk industrial applications, in particular those requiring a high-level of integration of the muting functions. SAFEGATE guarantees the integration of the muting sensors that can be connected directly to the safety light curtain. Programmable models (SMPO) functional parameters configuration can be managed via Safegate Configuration Software (SCS)

JANUS series is the solution for the protection of a vast number of high-risk industrial applications, in particular those requiring a high level of integration of the safety functions. For example, in the models with built-in Muting function, Janus guarantees the independence of the light grid from the control circuits of the system (often distant from the protected gate) and, where necessary, also the integration of the Muting sensors. Settings of each function integrally performed via the main connector.

VISION - Safety light curtains for the protection of the majority of industrial applications in Category 2. Test function activated automatically and periodically, without interruption of the operation of the machine being controlled. The breadth of the range, including MXL models with integrated Muting function.

Configurable Safety Controllers and Interfaces for Safety Devices

Safety controllers are capable of monitoring several safety sensors and commands, such as safety light curtains, laser scanners, photocells, mechanical switches, mats, emergency stops, two-hand controls, concentrating management of these in a single, flexible devices.

Safety interfaces are a dedicated interfaces between safety devices equipped with self-controlled safety static outputs and control circuits of the machine or plant.

Main Characteristics

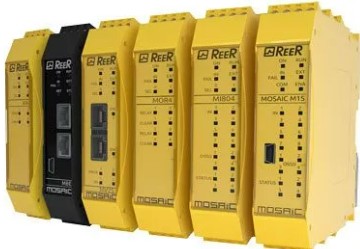

Mosaic - Safety controller able to manage all safety functions of machinery. It is configurable and scalable by providing cost reductions and minimal wiring.  See video on the Mosaic below or click on link to view brochure.

Mzero - Compact and configurable safety controller. Bringing full configuration capabilities at the cost of a standard safety relay. Click on link to view brochure.

Interfaces - Dedicated safety interfaces between safety sensors equipped with self-controlled safety static outputs and control circuits of the machine or plant. Modules for safety light curtains, safety switches, two-hand controls and e-stops. Click on link to view brochure.

What is a Perimeter Guard?

A perimeter guard, also known as a safety fence, is a barrier used to keep employees clear of an area for safety, security, privacy, or to simply keep the work area looking clean and organize. Applications for perimeter guards commonly include robot cells or machinery where the guarding system cannot be attached directly to the machine. Due to the wide variety of perimeter guarding needs, we create custom perimeter guards that can be made from t-slotted aluminum, steel, electronic safety devices, wire mesh, polycarbonate, or a mixture of multiple product lines for a custom safety guard.

No matter your needs, our Barry Sales team along with our FazTek partner are here to help you through the process of designing and building your next custom perimeter guard or safety fencing system.

View the FazTek Brochure

  • Alum Fencing Sys
  • Alum Perimeter Guard
  • Custom Guard
  • Perimeter Guard
  • Perimeter Guard
  • Safety Fencing
  • Separator
  • Steel Fencing
  • Steel Fencing
  • Steel Guard
  • Steel Perim. Guard
  • Wire Mesh Fencing

Machinery Anti-Restart and Motor Braking Options

Anti-Restart Machine Controls for preventing unintended machinery restart | UL 508 Listed for 110 VAC single-phase applications. The unit includes protected motor “start” with stop control and latching emergency stop button | Choose “plug and play” or hardwired options, 15 or 20 amp rated packages.

Model: GS-104-15A

PLUG & PLAY RECEPTACLE VERSION, 15 AMP. GOOD FOR UP TO 1.5 H.P. MOTORS, 15 AMPS

UL 508 Listed 120 VAC Motor control box provides a Stop/Start circuit along with a Category 1 latching Emergency Stop Button and 8’ power cord with molded male wall plug. The GS-104 also has an anti-automatic restart feature to prevent machines from automatic re-start after power loss. Existing machine electrical cord plugs directly into the GS-104 receptacle. An ideal device for meeting current electrical standards for smaller machinery such as belt sanders, drill presses and grinders. Now includes a removeable fuse holder!!!

Model: GS-104-15A-PIG

HARD WIRED PIG TAIL VERSION 15 AMP GOOD FOR UP TO 1.5 H.P. MOTORS, 15 AMPS

UL 508 Listed 120 VAC Motor control box provides a Stop/Start circuit along with a Category 1 latching Emergency Stop Button, 8’ power cord with molded male wall plugs and 48” PIGTAIL for direct machine wiring. The GS-104 also has an anti-automatic restart feature to prevent machines from automatic re-start after power loss. An ideal device for meeting current electrical standards for smaller machinery such as belt sanders, drill presses and grinders. Now includes a removeable fuse holder!!!

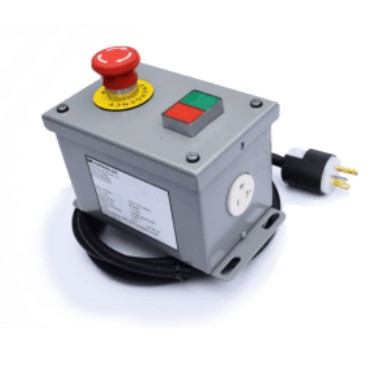

Model: GS-104-20A

PLUG & PLAY RECEPTACLE VERSION, 20 AMP. GOOD FOR UP TO 1.5 H.P. MOTORS 20 AMPS

UL 508 Listed 120 VAC Motor control with NEMA 4 METAL enclosure provides a Stop/Start circuit along with a Category 1 latching Emergency Stop Button and 8’ power cord with Nema 5-20p molded male wall plug. The GS-104 also has an anti-automatic restart feature to prevent machines from automatic re-start after power loss. Existing machine electrical cord plugs directly into the GS-104 Nema 5-20r receptacle. An ideal device for meeting current electrical standards for smaller machinery such as belt sanders, drill presses and grinders.

Model: GS-104-20A-PIG

HARD WIRED PIG TAIL VERSION 20 AMP. GOOD FOR UP TO 1.5 HP MOTORS, 20 AMPS

UL 508 Listed 120 VAC Motor control box provides a Stop/Start circuit along with a Category 1 latching Emergency Stop Button, 8’ power cord with molded NEMA 5-20p male wall plug and 18” PIGTAIL for direct machine wiring. The GS-104-20A-PIG also has an anti-automatic restart feature to prevent machines from automatic re-start after power loss. An ideal device for meeting current electrical standards for smaller machinery such as belt sanders, drill presses and grinders. Now includes a removeable fuse holder!!!

For more information and available options, give your Barry Sales Representative a call today at 636.326.1211.

Larco - Industrial Safety Mat Systems

How Larco Industrial Safety Mats Work

For 60 years, Larco has focused its efforts on developing and producing the most reliable and durable presence-sensing safety mats available. Designed to meet stringent industrial requirements, Larco safety mats offer a durable solution to your machine safety needs, resisting severe environmental conditions with reliable system performance.

  • Larco presence-sensing safety mats work like a normal-open switch. When stepped on, the "switch" closes and sends a signal to the controller, which sends a stop signal to the guarded machine controls.
  • Larco control units provide intelligence to the system by monitoring the safety mat.
  • Larco safety mats can be secured using a variety of trim and mounting methods that are built for a number of environments, including areas with heavy forklift traffic.

Safety Mats - How tough are Larco Safety Mats? You can drive a forklift over them without damaging the inside components. How sensitive are they? Just 5-10 pounds of normal foot pressure activates the sensor. No wonder they’re the preferred safety mats for industries ranging from automotive and aircraft manufacturing, to factories that produce tires and wood products. Choose from a full spectrum of colors, shapes and sizes, with custom logo options.

Controllers - Larco Safety Mat Controllers allow multiple mats to operate together, making it easy to enable or disable industrial processes. Our mat controls maximize productivity by giving operators and service personnel access to operational and diagnostic status of safety mat deployment.

  • Maximize productivity with control
  • Quickly enable and disable industrial processes
  • Visual feedback on mat status

Applications - Larco Industrial Safety Mat Systems have been used for machine safeguarding to successfully reduce hazards in a number of industries in machine point-of-operation, area, and perimeter guarding applications, including:

  • Robotic Welding
  • Laser Welding/Cutting
  • Water Jet Machines
  • Pick and Place Robots
  • Plastics Molding Machines
  • Assembly Machines
  • Automated Material Handling
  • Packaging Machinery
  • Textile Machinery
  • Conveyors
  • Paper Converting Machinery
  • CNC Punches & Tube Benders

For more information on Industrial Safety Mats and how they can best be applied in your application, please give your local Barry Sales Engineer a call.

View the Larco Industrial Safety Products Catalog
